VC520 Pro2 Microsoft Teams Rooms Edition

This exclusive version of the VC520 Pro2 speakerphone lets you start meetings instantly with an embedded Microsoft Teams button* and LED status indicator. Just touch the button to enter a meeting and check the call status. Also, you can enjoy an always-clear audio experience via the two expansion microphones that come with this special edition system.

* Only available for the VC520 Pro2 Microsoft Teams Rooms edition, which includes a camera, a speakerphone, and two expansion microphones.

VC520 Pro2

Get Perfect Audio with an Extended Speakerphone

The VC520 Pro2 offers balanced and steady audio performance. As the first conferencing system in the industry to deliver a daisy-chain function, the VC520 Pro2 supports either up to two expansion speakerphones or a full duplex microphone array. The inventive speakerphone makes the VC520 Pro2 a flexible option for fit mid-to-large conference rooms.

Note:
  • Expansion speakerphones and microphones cannot be added together.
  • The standard speakerphone cannot be applied as an expansion speakerphone.

VC520 Pro2
VC520 Pro2
VC520 Pro2
Configuration
  • Max. Cable length of each combination is 40 meters, from the Camera.
VC520 Pro2
VC520 Pro2

Support Video and Audio with One USB Cable

Installing the VC520 Pro2 is super easy. All you need to get set up for a call is a single USB cable. This direct connection not only saves time but also keeps your meeting table tidy and organized. Simplify your setup process and decrease installation costs with the VC520 Pro2.

Spot Every Detail with an 24X* Total Zoom

Present products in extreme clarity and demonstrate every detail with an 24X* total zoom. The VC520 Pro2 also maximizes team collaboration with smoother video imaging than ever at up to 1080p, 60fps quality.

*Please use PTZApp 2 to set up 24X zoom.

VC520 Pro2

Improve Meeting Safety & Efficiency with SmartFrame

AVer developed an advanced SmartFrame function that conforms to the latest trends. Equipped with this upgraded auto-framing feature, the VC520 Pro2 can detect and frame meeting participants even when they wear masks or present facial profiles from up to 7 meters away. The VC520 Pro2 cuts through triviality and greatly improves conferencing efficiency.
Auto Framing Preset Framing

VC520 Pro2
VC520 Pro2

Livestream Videos Anytime, Anywhere

Share your real-time happenings to viewers over the internet. With H.264 RTSP/RTMP support, the VC520 Pro2 offers stable livestreaming to your favorite channel in 1080p at 60pfs. Deliver first-hand information to your audience and address the latest news whenever and wherever you like.

Keep Natural Clarity in Any Light Conditions

There’s no need to worry about lighting anymore! The Sony sensor embedded in the VC520 Pro2 enables True WDR up to 120dB. Effortlessly control the light values of pixels and display constant clarity on the screen.

VC520 Pro2

Hardware Spec

  • 1Available with VC520 Pro2 Speakerphone set
  • 2USB 3.1 Type-B
  • 3RS232 in/out
  • 4LAN for IP streaming/remote access
  • 5DC 12V

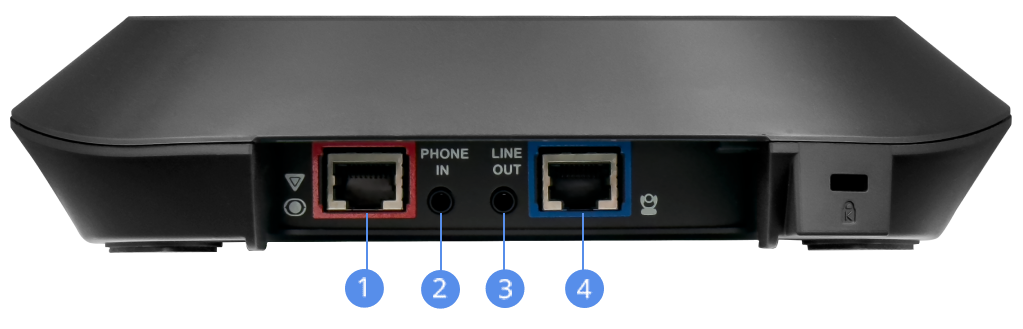

  • 1Daisy-chain up to 3 speakerphones or 4 microphones
  • 2Phone in
  • 3Line out
  • 4Available with VC520 Pro camera set

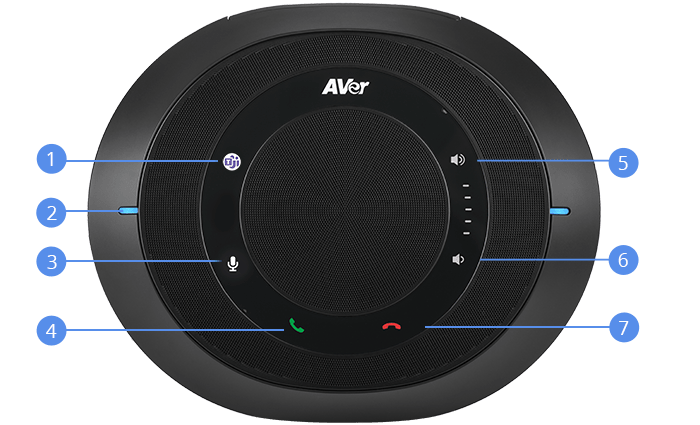

  • 1Teams embedded button
  • 2LED status indicator
  • 3Mute/Unmute
  • 4Make/Answer call
  • 5Volume up
  • 6Volume down
  • 7Hang up call
  • 1Mute/Unmute
  • 2Phone input
  • 3Make/Answer call
  • 4Volume up
  • 5LED status indicator
  • 6Volume down
  • 7Hang up call

AVerBravo

VC520 Pro2 vs. VC520 Pro
Model VC520 Pro2 VC520 Pro
Camera
Zoom Ratio 12X Optical Zoom (18X Total Zoom) 12X Optical Zoom (18X Total Zoom)
Resolution 1080p 1080p
FOV 84.5° 82°
Frame Rate USB: 1080p/60fps USB: 1080p/60fps
Video Formats M-JPEG/YUV/H.264 M-JPEG/YUV/H.264
Movement PTZ PTZ
Pan 340° (±170°) 340° (±170°)
Tilt 120° 120°
Preset 10 on remote (128 via RS232) 10 on remote (128 via RS232)
Far-Site Control Yes (only applicable to Skype for Business) Yes (only applicable to Skype for Business)
Speakerphone
Expansion Solutions Up to 3 speakerphones or 4 microphones Up to 3 speakerphones or 4 microphones
Speakerphone I/O Phone in/Line out Phone in/Line out
Advanced Features
SmartFrame Yes (Auto framing, Preset framing) Yes (Auto Framing)
WDR True WDR True WDR
IP Streaming Yes (RTSP/RTMP) Yes (RTSP/RTMP)
RS232 Yes (RS232 in/out) Yes (RS232 in/out)

Specifications

  • Camera
    • Sony super-low-light 2M pixel sensor for clear and natural imaging in low-light conditions
    • Resolution: (16:9) 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, 424 x 240, 320 x 180; (4:3) 800 x 600, 640 x 480, 480 x 360, 320 x 240 at 60, 30, 15fps
    • SmartFrame for automatic FOV adjustment to fit all participants
    • Smart Gallery* function offers great visibility for individual participant in the meeting room
    • Innovative Preset Framing: Follow presenter based on preset areas
    • True WDR up to 120dB: Superb backlight compensation technology for optimizing light balance in high-contrast conditions
    • Zoom: 24X* total zoom (12X optical zoom)
    • Field of view(D/H/V): 84.5°/76°/48°
    • Lens focal length: 3.9 mm (wide) ~ 47.3 mm (tele)
    • Lens F#: 1.8 (wide) ~ 2.8 (tele)
    • Mirror, Flip, AE, white balance: auto, manual override via PTZApp 2
    • Minimum focus distance: 1.5 m
    • Standard tripod screw holes and Kensington slot
    • People-counting API: enterprises and third-party software providers can obtain people-counting data for better understanding of meeting-space usage
      • *Please use PTZApp 2 to set up Smart Gallery and 24X zoom.
  • Motorized Pan & Tilt Movement
    • Pan: ±170°
    • Tilt: +90° (up) -30° (down)
    • 10 camera presets (via remote control)
    • Fast and quiet pan & tilt movement
  • Video Format
    • YUV, YUY2, MJPEG, NV12
    • Network video compression format: H.264, H.265
    • Network protocols: RTSP, RTMP
  • Speakerphone
    • Full duplex microphone array with echo cancellation
    • Advanced noise suppression
    • Dual-omnidirectional microphone array
    • 3.5 mm phone-in jack
    • 3.5 mm line out
    • Speaker: 6W, Adjustable to 90dB SPL at 0.5 m
    • Touch controls for volume down/up, mute, phone input (Microsoft Teams SKU w/o this function), call, hang-up, and, Teams button*
    • Bridge phone-in and USB into one call
    • Security: Kensington slot
      • *Only available for the VC520 Pro2 Microsoft Teams edition
  • Audio Format
    • AAC-LC
    • Network protocol: RTSP, RTMP
  • Connectivity
    • 12V/5A power adaptor
    • Mini DIN9 for RS232 in & out connection (VISCA control panel and camera daisy-chain)
    • USB 3.1 Type-B connector
    • IP (RJ45)
  • Environmental Data
    • Operation temperature: 0°C ~ 40°C
    • Operation humidity: 20% ~ 80%
    • Storage temperature: -20°C ~ 60°C
    • Storage humidity: 20% ~ 80%
  • Dimensions
    • Package dimensions: 259 x 259 x 349 mm*
    • Package weight: 5.4 kg*
    • Camera: 142.7 x 153 x 182 mm/1.45 kg
    • Speakerphone: 220 x 181.5 x 49.5 mm/0.85 kg
    • Remote control: 200 x 50 x 21 mm/0.09 kg
      • * VC520 Pro2 Microsoft Teams edition
      Package dimensions: 348 x 251 x 308 mm
      Package weight: 6.7kg
  • Package Contents
    • VC520 Pro2 Camera
    • VC520 Pro Speakerphone
    • Remote control
    • Power adapter
    • Power cord (6 ft/1.8 m)
    • USB2.0 type-B to type-A cable (16.5 ft/5 m)
    • Camera to Speakerphone Cable (33ft/ 10m)
    • 3.5 mm aux cable (3 ft/0.9 m)
    • QR code card
    • Wall-mount bracket
    • ¼" tripod screw
    • 2 Expansion microphone and 5 m Cable*
      • *Only available for the VC520 Pro2 Microsoft Teams edition
  • USB
    • 3.1 Gen 1 Type-B, backward compatible with USB 2.0
    • UVC (USB video class) 1.1
    • UAC (USB audio class) 1.0
    • UVC1.5*
      • *UVC1.5 requires an additional firmware upgrade. Please contact technical support for more details.
  • Control
    • IR remote control
    • VISCA/Pelco-P/Pelco-D via RS232 (128 preset points via VISCA command)
    • Remote side: VISCA over IP, IP (RJ45)
    • UVC/UAC plug-and-play
    • WebUI: Browser IP access via Chrome (does not support Internet Explorer)
    • PTZApp 2
  • Mount
    • Camera wall-mount bracket included
    • Optional foldable TV mount
    • Optional ceiling mount
  • System Requirements
    • Windows® 7/10/11
    • MacOS 10.14 or higher
    • Chromebox 3 version 94.0.4606.114 or later
  • Hardware Specs
    • 3.2 GHz Intel® Core™ i5-4460 Processor or higher
    • 4 GB RAM or more
    • USB 3.1 port, backward compatible with USB 2.0 port
  • Web page browser requirement
    • Chrome: version 76.x or above
    • Firefox: version 69 or above
    • IE: Not support
  • Power Supply
    • AC 100V ~ 240V, 50/60 Hz
    • Consumption: 12V, 5A
  • Free Applications for Meeting Collaboration
    (Windows® and Mac)
    EZManager 2: Camera Central Management software
    • Remotely group FW/SW upgrades, control the camera, and configure settings
    PTZApp 2
    • Upgrade firmware automatically or manually
    • Control camera
    • Set parameters and adjust camera image
    • Diagnose operating status
    • View live video
    EZLive
    • Real-time streaming / annotating / snapshots / video recording
  • Optional Accessories
    • Mini DIN8 to D-SUB9 RS232 adapter
    • Expansion Speakerphone
    • Expansion Microphone
    • Foldable TV mount
    • USB3.1 fiber extender 10m/20m/30m
    • USB3.1 type-B to type-A cable 3m
    • Ceiling mount
  • Warranty
    • Camera / Speakerphone: 3 years
    • Accessories: 1 year
  • Compatible Applications
    • Zoom, Microsoft® Teams, Skype for Business, Skype, Google Meet, Intel® Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting®, TrueConf, Vidyo, Adobe® Connect™, Cisco Webex®, Fuze, GoToMeeting™, Microsoft® Lync™, vMix, WebRTC, Wirecast, XSplit
    **Specifications may vary depending on countries and are subject to change without notice.

* Specifications may vary depending on countries and are subject to change without notice.

URL

Accessories

  • VC520 Pro2 Camera
    VC520 Pro2 Camera
  • VC520 Pro2 Speakerphone
    VC520 Pro2 Speakerphone
  • Remote Control PN:412U340-ASB
    Remote Control
  • Power Adapter PN:04131HGOOARC
    Power Adapter
  • USB2.0 type-B to type-A cable (16.5 ft/5 m) PN: 064AUSBCFG
    USB2.0 type-B to type-A cable (16.5 ft/5 m)
  • Camera to Speakerphone Cable (33 ft/10 m) PN: 064AOTHERCD3
    Camera to Speakerphone Cable (33 ft/10 m)
  • Power cord (6 ft/1.8 m)
    Power cord (6 ft/1.8 m)
  • 3.5 mm aux cable (3 ft/0.9 m) PN: 064AAUDIOCBS
    3.5 mm aux cable (3 ft/0.9 m)
  • Wall-mount bracket PN:112AU340-A6B PN:112AU340-A6C PN:100AAAAAAAMD*2
    Wall-mount bracket
  • ¼
    ¼" tripod screw
  • QR Code Card
    QR Code Card
  • Expansion Speakerphone PN: 60U0100000AB
    Expansion Speakerphone
  • Expansion Microphone PN:60U0100000AC
    Expansion Microphone
  • Mini Din 9 to mini DIN8 RS232 Adapter PN:064AOTHERCGR
    Mini Din 9 to mini DIN8 RS232 Adapter
  • Mini DIN8 to D-SUB9 RS232 adapter PN: 064AOTHERBPK
    Mini DIN8 to D-SUB9 RS232 adapter
  • USB3.1 fiber extender 10m/20m/30m 10M - PN: 064AUSB−−CC5 20M - PN: 064AUSB−−CC6 30M - PN: 064AUSB−−CDS
    USB3.1 fiber extender 10m/20m/30m
  • Ceiling Mount PN: 112AV8U2-A5A
    Ceiling Mount
  • USB3.1 type-B to type-A cable 3m PN:064AUSBCDD
    USB3.1 type-B to type-A cable 3m
  • Foldable TV Mount PN: 60V2C10000A7
    Foldable TV Mount
  • * Please contact local authorized dealer/distributor for purchasing optional accessories.
  • * Please refer to the extension speakerphone/microphone configuration before purchasing these devices. (See the VC520 Pro manual for more details.)
