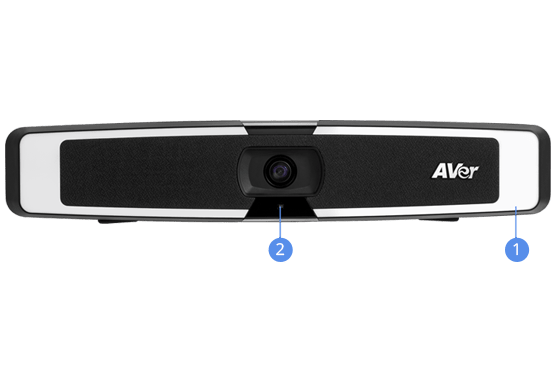

• Camera

  • 4K optics lens, 120° FOV, up to 5X zoom*
  • Sony 4K sensor: ultra-crystal-clear image in any lighting
  • Frame rates: (16:9) 4K 30fps; 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, at 60, 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480 at 60, 30, 15fps
  • Adjustable audio fence: freedom to define your meeting area
  • Intelligent fill light: Automatically adjust lighting level to make you look energetic in virtual meetings in a dim environment**
  • Supports autofocus: SmartFrame function automatically adjusts the FOV to track and fit all participants on screen
  • SmartSpeaker: Voice triggered tracking people or specific preset areas.
  • True WDR up to 120db: 3D noise-reduction and superb backlight compensation optimize lighting in high-contrast conditions
  • Mirror, flip, AE, white balance: auto/manual override via PTZApp 2
  • Minimum focus distance: 60 cm
  • People-counting API: enterprises and third-party software providers can obtain people-counting data for better understanding of meeting-space usage
  • 10 camera presets (through remote control and IP web page)

  *Please use PTZApp2 to set up 5X zoom.
  **The best lighting distance is for people sitting within 1meter far from the camera

• Audio

  • Beamforming microphone array: 5 microphones, 5-meter pickup range
  • Echo cancellation and background noise suppression
  • Supports an expansion microphone
  • 6W speaker with a professional bass port tuned for communication
  • 180Hz–20kHz speaker frequency response
  • Output volume: 94dB SPL +/-2dB at 0.5 meters

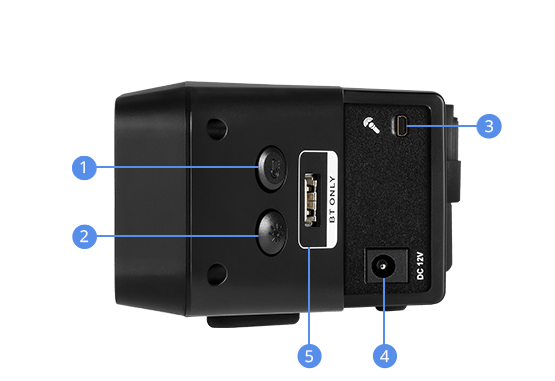

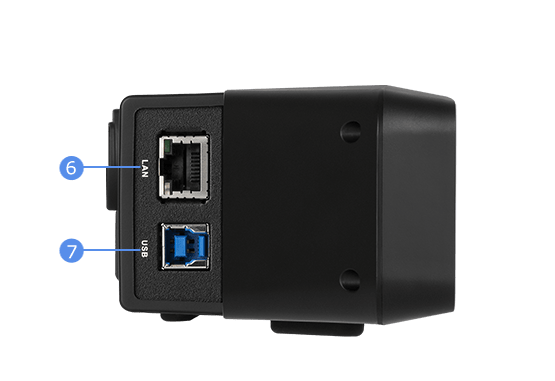

• Connectivity

  • 12V/2A power adapter
  • Mini-B for expansion microphone connection
  • USB Type-B 3.1 connector, backward compatible with USB 2.0
  • RJ45 port for Ethernet
  • USB 2.0 Type-A for wireless connection*

  *Optional wireless dongle is required to connect with mobile phone

• Video Format

  • YUV, YUY2, MJPEG
  • Network video compression format: H.264, H.265
  • Network protocols: RTSP, RTMP*

  *When USB streaming is in use, RTSP and RTMP are not available.

• USB

  • 3.1 Gen 1, backward compatible with USB 2.0
  • UVC 1.1 (USB video), UAC 1.0 (USB audio), UVC1.5*
  *UVC1.5 requires an additional firmware upgrade. Please contact technical support for more details.

• Control

  • IR remote control
  • WebUI: IP access via Chrome browser (Chrome 76.x or later; Internet Explorer not supported)
  • UVC/UVA plug-and-play
  • PTZApp 2

• Mount

  • Camera wall-mount bracket
  • Screen mount kit (optional)
  • TV VESA mount (optional)

• Optional Accessories

  • Wall mount and mounting screws
  • Screen mount kit
  • BT Dongle
  • 10m/20m expansion microphone
  • 10m/20m/30m USB 3.1 extension cable
  • USB 3.1 GEN1 Type-B to Type-A cable, 3 m

• Warranty

  • Camera: 3 years
  • Accessories: 1 year

• System Requirement

  • Windows® 7/10/11
  • MacOS 10.14 or later
  • Chromebox 3 version 94.0.4606.114 or later

• Hardware Specs

  • 3.2 GHz Intel® Core™ i5-4460 processor
  • 4 GB RAM or more
  • USB 3.1 port, backward compatible with USB 2.0

• Power Supply

  • AC 100V–240V, 50/60 Hz
  • Consumption: 12V/2A

• Free Applications for Meeting Collaboration
  (Free Apps support on Windows® and Mac® computers)

  EZManager 2: Camera Central Management Software

  • Remotely group FW/SW upgrades, control the camera, and manage settings

  PTZApp 2: Camera Setting Software

  • View live video, people counting number, meeting interval information
  • Enable Skype for Business far-end control
  • Upgrade firmware automatically or manually
  • Control the camera
  • Set parameters and adjust the camera image
  • Diagnose operating status

  EZLive: Broadcasting Software

  • Enjoy multi-camera real-time streaming, annotating, image capturing, and video recording

• Environmental Data

  • Operation temperature: 0 ~ 40°C
  • Operation humidity: 20% ~ 80%
  • Storage temperature: -20 ~ 60°C
  • Storage humidity: 20% ~ 80%

• Dimensions

  • Package dimensions: 406(L)x146(W)x189(H) mm
  • Package weight: 2.358 kg
  • Camera: 350(L) x 65(H) x 75(D) mm/0.922 kg
  • Remote control: 149.72 x 42.3 x 19.29 mm/50g

• Package Contents

  • VB130 unit
  • Power cable 10 ft (3 m)
  • USB 2.0 Type-B to Type-A Cable 15 ft (5 m)
  • QR code card
  • Wall mount
  • Remote control
  • Tripod screw

• Compatible Applications

  • Microsoft® Teams, Skype for Business, Skype, Zoom, Google Meet™, Intel® Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting®, TrueConf, Adobe® Connect, Cisco WebEx®, Fuze, GoToMeeting™, Microsoft® Lync™, Vidyo, vMix, WebRTC, Wirecast, XSplit


  *For 4K UHD support, please check system/hardware requirements with your software application provider.

* Specifications may vary depending on countries and are subject to change without notice.
