For All Sizes Meeting Room

Huddle Room For 1-4 People (3X3m)

CP10
  • CAM340+, CAM130, VB130, VB342+
  • FONE540
  • Intel NUC/IFP
  • CP10

Small Room For 4-7 People (4.5X4.5m)

CP10
  • VB342+, VB130
  • Intel NUC/IFP
  • CP10

Mid-Large Room For 8-24 People (4.5X8.5m)

CP10
  • VC520 Pro2 (wired), CAM540, CAM520 Pro2
  • FONE540
  • Intel NUC/IFP
  • CP10
Anti fingerprint glass
10 touch point
CP10

One Touch Starts Efficient Communication

Initiate meetings with just one touch. The AVer CP10 is seamlessly integrated with Zoom Rooms software, and its capacitive-touch sensor supports 10-point touch on a 10.1-inch anti-fingerprint screen. The CP10 is always on standby.

One Cable Connects Everything

Simplify meetings via a single Ethernet connection that delivers both power and camera control. With the CP10 in the room, it’s incredibly easy to keep the table clear of clutter so you can focus on your work.

*Note: PoE injector is an optional item.

CP10 CP10 CP10

CP10

One Antibacterial Solution Keeps Everyone Safe

Enjoy a safer environment with the CP10’s antibacterial touch screen. This innovative technology lets you touch the screen without leaving germs on the surface. Get the 24/7 Antibacterial protection you need.

Antibacterial Touch Glass
CP10
CP10
Camera control via ZoomRooms app
Camera control via AVer PTZApp
CP10

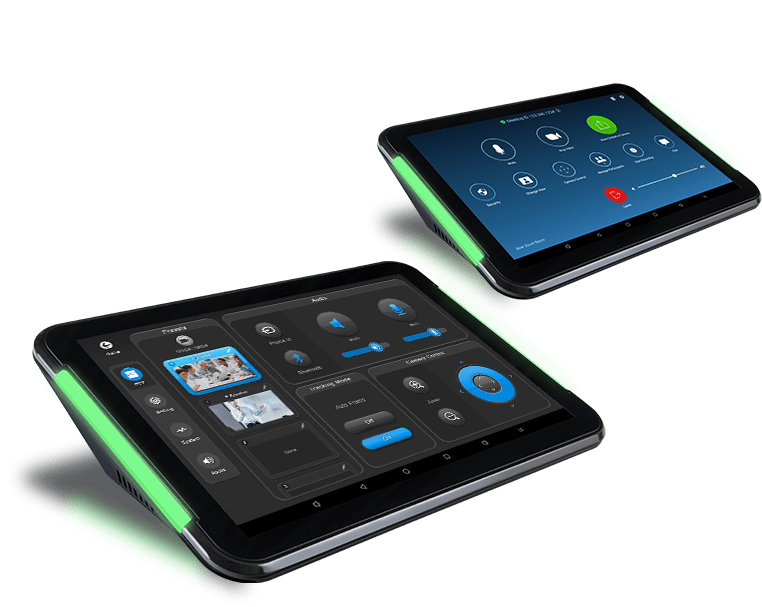

One Intuitive Interface Simplifies Operation

Anyone can use the CP10 to run a video call, thanks to its intuitive interface. Also, the integrated AVer PTZApp enables camera setup and control, including features like visual preset points. You can even personalize the system to improve productivity.

CP10

One Step Sets up the Best Viewing Angle

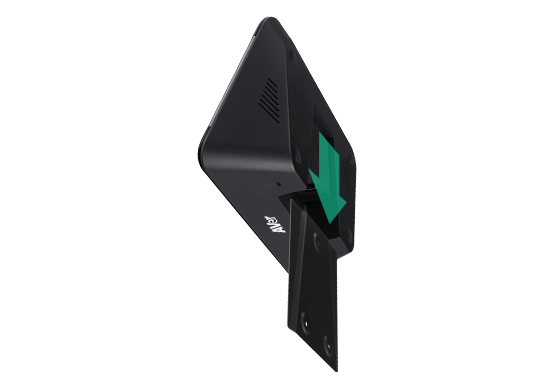

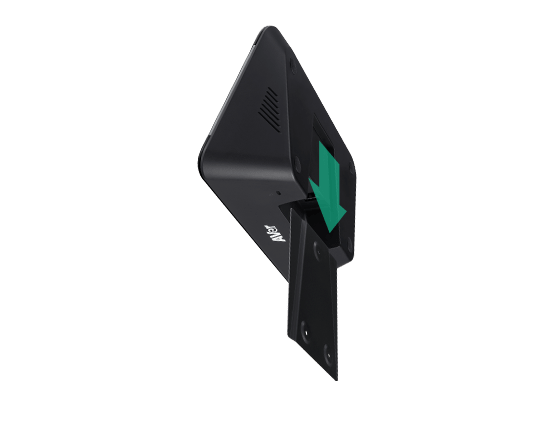

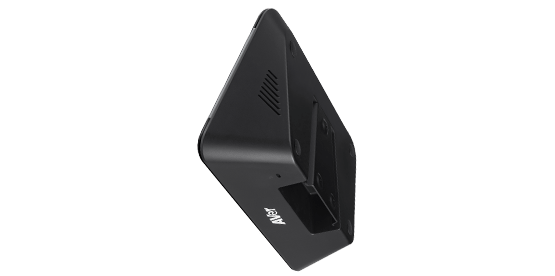

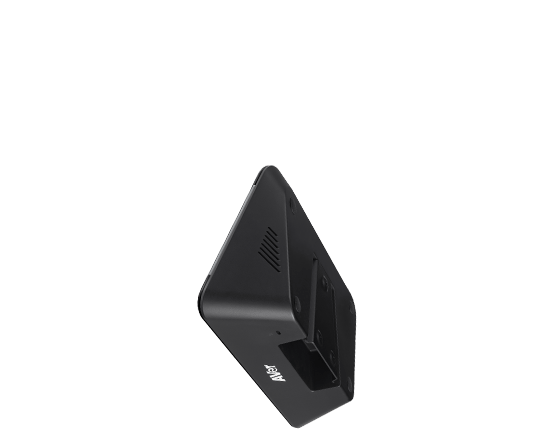

Setting up the CP10 requires minimal time and energy. Plug in one cable and it’s ready to use. A built-in stand offers a comfortable 23° viewing angle for ergonomic tabletop usage, or you can use it as a scheduling panel, installing it on the wall via its convenient slide-in mount.

23°
CP10

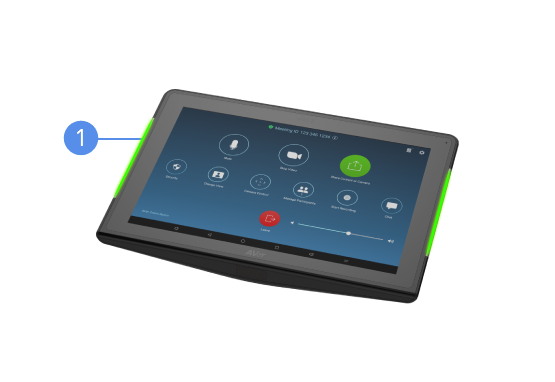

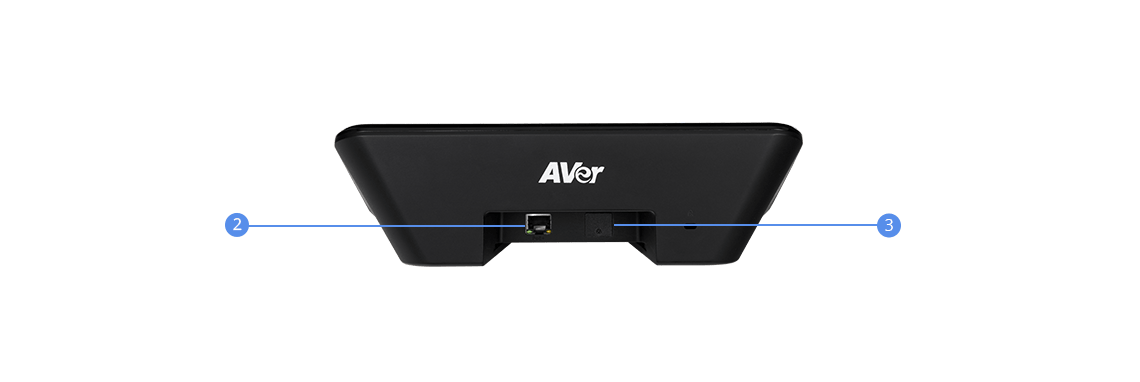

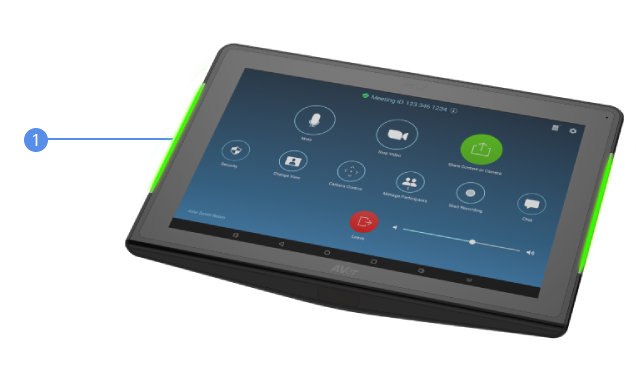

Hardware Specifications

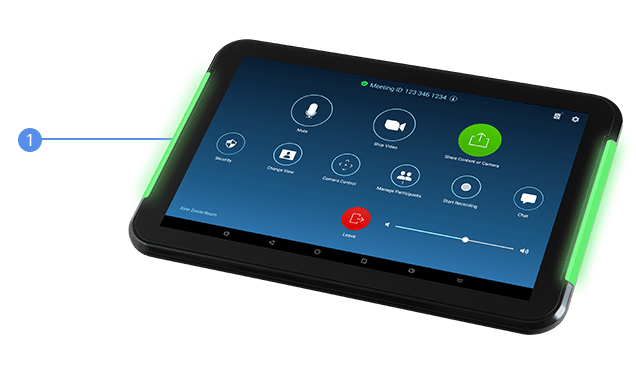

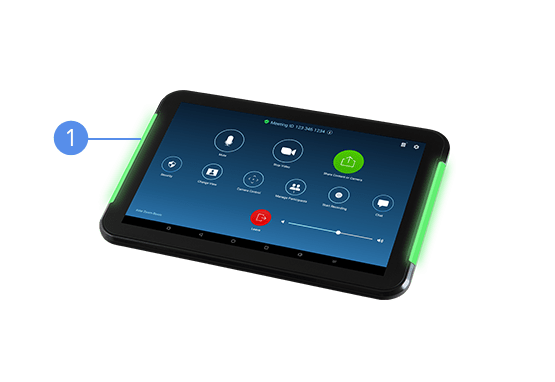

  • 1 LED bar

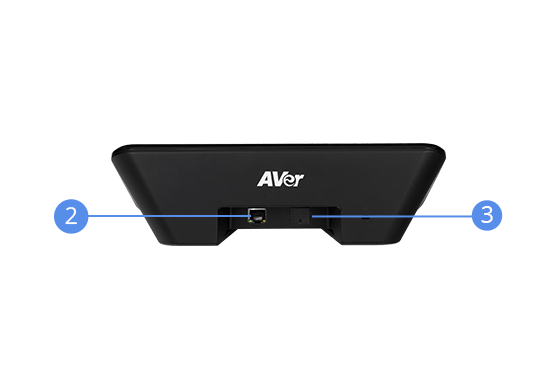

  • 1 LAN (PoE+)
  • 2 USB2.0 type A

Specifications

  • Display
    • Antibacterial glass panel*
    • 10.1-inch anti-fingerprint screen
    • Resolution: 1280 x 800
    • Aspect ratio: 16:10
    • Comfortable and ergonomic viewing angle:
      • Built-in table stand with a 23° display angle
      • Optional wall mount with a 68° display angle
    *Antimicrobial glass is FDA (USA) &SIAA (JP) certified.
    *Unlike normal antimicrobial film or spray, CP10's glass uses ion exchange technology to maintain antibacterial effectiveness for the product's lifetime.
  • Technology
    • Capacitive-touch sensor supports 10 touch points
    • Side LED bar clearly reveals meeting status: Muted/unmuted/room availability*
    • A single RJ45 cable carries both data and power to keep the table neat
    • G-sensor for screen rotation
  • System
    • Android 10
  • Mount and Security
    • Wall-mount kit (optional)
    • Kensington security lock
  • Connectivity
    • Power over Ethernet (PoE+)
    • USB 2.0 Type A (x1) for diagnostics and firmware upgrades
  • Power
    • Consumption: 12V/1A
  • Applications for Meeting Collaboration
    • Zoom Rooms controller app (preinstalled)
    • AVer PTZApp2: Camera setting software (preinstalled)*
    • View live video, set camera parameters
    • Intuitive touch interface for camera control
    • Compatible with AVer USB cameras
    *1. The PTZApp2 on the CP10 is different from the PC version.
    *2. The PTZApp2 on the CP10 will first support CAM520 Pro, CAM520 Pro2, VC520 Pro, VC520 Pro2, and VB130 via Ethernet connection. Support for these and other Aver USBCAMs via USB connection to PC will be available in August 2021.
  • Package Contents
    • CP10
    • Quick Start Guide
    • Warranty statement
  • Optional Accessories
    • 1-port POE+ injector, compatible with 802.3 at or af standard
    • Wall mount
  • Environmental Data
    • Operation temperature: 0 to 40°C
    • Operation humidity: 20% to 80%
    • Storage temperature: -20 to 60°C
    • Storage humidity: 20% to 80%
  • Dimensions
    • Package dimensions: 328 (L)x 215 (W)x 125 (H)mm
    • Package weight: 1kg / 2.2lbs
    • CP10 unit: 250 mm x 174 mm x 85 mm / 0.9 kg
  • Warranty
    • 2 years parts and labor warranty

* Specifications may vary depending on countries and are subject to change without notice.
** Bright and black dot in the LCD panel: maximum 3 dots for each.

URL

Accessories

  • CP10
  • Warranty statement
  • Quick Start Guide
  • 112AU100-A34
    Wall mount
  • 50U1000000AB (USA) 50U1000000AF (AU) 50U1000000AC (EU+UK) 50U1000000AD (JP) 50U1000000AE (TW)
    1-Port PoE+ Injector Cable
  • * Please contact local authorized dealer/distributor for purchasing optional accessories.
