- Camera
-
- Sony super-low-light 2M pixel sensor, clear and natural
imaging in low-light conditions
- Resolution: (16:9) 1920 x 1080, 1600 x 900, 1280 x 720,
960 x 540, 848 x 480, 800 x 448, 640 x 360, 424 x 240,
320 x 180; (4:3) 800 x 600, 640 x 480, 480 x 360, 320 x
240 at 60, 30, 15fps
- SmartFrame for automatic FOV adjustment to fit all participants
- Smart Gallery* function offers great visibility for individual
participant in the meeting room
- Innovative Preset Framing: Follow presenter based on
preset areas
- True WDR up to 120db: Superb backlight compensation
technology for optimizing light balance in high-contrast
conditions
- Zoom: 24X* total zoom (12X optical zoom)
- Field of view(D/H/V):84.5°/76°/48°
- Lens focal length: 3.9 mm (wide) ~ 47.3 mm (tele)
- Lens F#: 1.8 (wide) ~ 2.8 (tele)
- Mirror, flip, AE, white balance: auto/manual override via
PTZApp 2
- Minimum focus distance: 1.5 m
- Standard tripod screw holes and Kensington slot
- People-counting API: enterprises and third-party software
providers can obtain people-counting data for better
understanding of meeting-space usage
Please use PTZApp 2 to set up Smart Gallery and 24X zoom.
-
- Motorized Pan & Tilt Movement
-
- Pan: ±170°
- Tilt: +90° (up) -30° (down)
- 10 camera presets (via remote control)
- Fast and quiet pan/tilt movement
-
- Video Format
-
- YUV, YUY2, MJPEG, NV12
- Network video compression format: H.264, H.265
- Network protocol: RTSP, RTMP
-

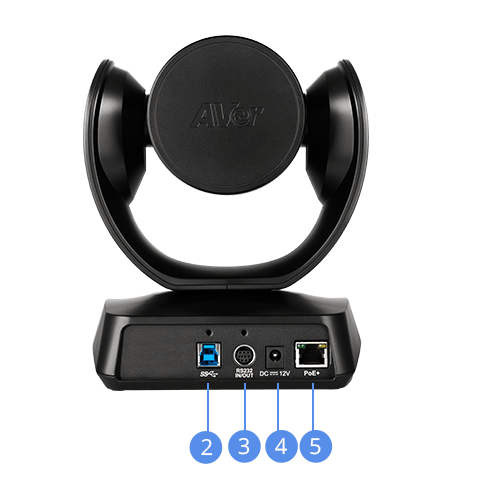

- Connectivity
-
- 12V/2A power adaptor
- Mini DIN9 for RS232 in & out connection (VISCA control panel and camera daisy chain)
- USB 3.1 type-B connector
- IP (RJ45)
-
- USB
-
- 3.1 Gen1 Type B, backward compatible with USB 2.0
- UVC (USB video class) 1.1, UVC1.5*
*UVC1.5 requires an additional firmware upgrade. Please contact technical support for more details.
-
- Control
-
- IR remote control
- VISCA/pelco P/pelco D via RS232 (128 preset points via VISCA command)
- Remote side: VISCA over IP, IP (RJ45)
- UVC/UAC plug and play
- WebUI: Browser IP access via Chrome (Does not support Internet Explorer)
- PTZApp 2
-
- Package Contents
-
- CAM520 Pro2 unit
- Remote control
- 5m, USB2.0 type-B to type-A cable
- Power adapter (10 ft/3 m)
- QR code card
- Wall-mount bracket
- ¼" tripod screw
- Mini DIN9 to mini DIN8 RS232 adapter
-
- Optional Accessories
-
- Mini DIN8 to D-SUB9 RS232 adapter
- Foldable TV mount
- Ceiling mount
- USB3.1 fiber extender 10m/20m/30m
- USB3.1, 3m type-B to type-A cable
-
- Mount
-
- Camera wall-mount bracket included
- Optional foldable TV mount
- Optional ceiling mount
-
- System Requirements
-
- Windows® 7/10/11
- MacOS 10.14 or higher
- Chromebox 3 version 94.0.4606.114 or later
-
- Hardware Specs*
-
- 3.2 GHz Intel® Core™ i5-4460 processor
- 4 GB RAM or more
- USB 3.1 port , backward compatible with USB2.0 port
-
- Web page browser requirement
-
- Chrome: version 76.x or above
- Firefox: version 69 or above
- IE: Not support
-
- Power Supply
-
- AC 100V ~ 240V, 50/60 Hz
- Consumption: 12V, 2A
- PoE+: 802.3at
-
- Free Applications for Meeting Collaboration
(Windows® and MAC)
-
EZManager 2 : Camera Central Management software
- Remotely manage group FW/SW updates, camera control, and settings
PTZApp 2
- Support Virtual Streaming function.*
- Compatible with Skype for business far-end control
- Upgrade firmware automatically or manually
- Control camera
- Set parameters and adjust camera image
- Diagnose operating status
- View live video
EZLive
- Real-time streaming / annotating / image capturing / video recording
*Only available in Windows PC. Doesn't support in MAC PC.
-
- Environmental Data
-
- Operation temperature: 0°C ~ 40°C
- Operation humidity: 20% ~ 80%
- Storage temperature: -20°C ~ 60°C
- Storage humidity: 20% ~ 80%
-
- Dimensions
-
- Package dimensions: 256 x 256 x 274 mm
- Package weight: 3.335 kg/7.35 lbs
- Camera: 182 x 142.7 x 153 mm/1.47 kg
- Remote control: 200 x 50 x 21 mm/0.09 kg
-
- Warranty
-
- Camera: 3 years
- Accessories: 1 year
-
- Compatible Applications
-
- Zoom, Microsoft® Teams, Skype for Business, Skype,
Google Meet, Intel® Unite™, RingCentral, BlueJeans,
V-Cube, LiveOn, CyberLink U Meeting®, TrueConf, Adobe®
Connect™, Cisco Webex®, Fuze, GoToMeeting™, Vidyo, vMix,
WebRTC, Wirecast, XSplit
* Specifications may vary depending on countries and are subject to change without notice.
