H300 - 4-site embedded MCU HD video conferencing System

one-touch recording

one of a kind table hub

4 sites multipoint

intelligent tech support

5M snapshot sharing

features

key features

see every expression in high definition with the H300's HD720p resolution at 1M bandwidth
share and receive content from laptops, visualizers (document cameras) and similar devices while still displaying the live video feed
experience crystal clear, lag-free video feed thanks to the 30fps frame rate
let any authorized user turn his or her iPad, iPhone or Android mobile device into a second remote control for your H300 using AVer's free VCLink mobile app
playback recorded meetings in the original .vc file format, or convert them into .mov files with the latest version of the free VCPlayer software
eliminate the need for external speakers and normal mess of wires with the unique table hub design
connect with any far-site device supporting the H.323 protocol, and the H.239 protocol for content sharing

solutions

routine daily meetings — point to point

Many businesses desire a simpler way to hold their routine daily meetings. Simply connect your H300 to any kind of display device and hold your meeting quickly and easily.
real-time decision making — multipoint communication

The H300 supports multipoint communication up to 4 sites. Thus, with one H300 you can connect to any other three H.323 supported end-points and bring in experts and decision makers from different locations in a minute, accelerating the decision making process.
monthly report — dual screen display supported

To keep employees across the globe closely connected, frequent face-to-face meetings are necessary. The H300 supports dual screen display capabilities, allowing you to project shared content on one screen and live video feed on the other to present everything at the same time.
product demonstrations — visualizer (document camera) applications

Connecting a visualizer (document camera) to your H300 allows you to display your real-life products, models, and/or documents to everyone in the meeting. Of course, live camera images are still present when displaying content from a visualizer (document camera), making communication more interactive and more natural.
quarterly training — content sharing

Connecting a laptop to an H300 allows you to share the content from your PC with everyone in the conversation. Thus, a training session can be delivered to multiple branches simultaneously which allows you to leverage your talent pool and save lots on training costs.
annual event — multipoint presentation

Supporting dual monitor display makes the H300 a suitable choice for larger conference rooms. By holding an annual event via the H series, anyone can share content with the other participants or see presentations being displayed from one of the far sites. With the H300 you can get everyone together easily without the trouble and high costs of business travel.

specs

model	H300
system includes

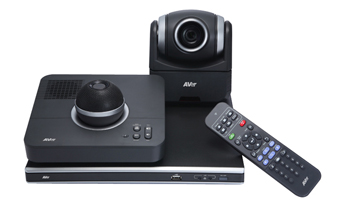

main system HD quality PTZ camera table hub microphone (omnidirectional) IR remote control connection cables
communications
H.323, SIP standards 128Kbps ~ 4Mbps RJ45 network LAN (10/100Mbps) manual bandwidth setting
display
supports NTSC / PAL / XGA (4:3 RGB) / 720p (16:9 RGB) display supports single and dual monitor display multiple layout scheme user-friendly OSD (supports 21 languages: English, Traditional Chinese, Simplified Chinese, Czech, Danish, Dutch, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese-Brazil, Romanian, Russian, Spanish, Swedish, Thai) display / edit site-name
video standards
H.264, H.263, H.263+, H.261 H.239 dual video streams
video features
video conferencing resolutions: - QSIF (176 x 120) - QCIF (176 x 144) - SIF (352 x 240) - CIF (352 x 288) - 4SIF (704 x 480) - 4CIF (704 x 576) - HD720p (1280 x 720) content sharing resolutions: - VGA (640 x 480) - SGA (800 x 600) - XGA (1024 x 768) - SXGA (1280 x 1024) supports rate control mechanism supports H.239 dual video stream shared from local or far site
camera
5-megapixel CMOS camera 7X optical zoom PTZ function (±25° up/down; ±100° left/right) F = 3.325 ~ 3.675; fl = 6 ~ 60mm 30cm MOD 62° FOV
video inputs
PTZ camera input composite video input S-video input VGA input (for dual stream content)
video outputs
VGA output x 2 composite video (RCA) output S-video output
audio features
echo cancellation auto gain control noise suppression
audio standards
G.711, G.722, G.728, G.722.1/G.722.1C licensed from Polycom^®
MIC in
AVer omnidirectional (360°) MIC in MIC in (3.5mm)
audio inputs
audio in (3.5 mm)
audio outputs
audio out (3.5 mm)
multi-sites features
H.323 standard MCU up to 4 sites content sharing from any site
video conference auxiliaries
meeting recording function - record & save meetings directly to a USB flash drive - support screen re-layout during playback snapshot sharing function - capture 5M image for live sharing - zoom (2X) / pan the captured image
others
embedded 10W speaker firmware update via Ethernet, USB flash drive or the Internet through AVer's WebTool upload and manage your phonebook via the Internet through AVer's WebTool remote control app. on iOS & Android mobile devices phonebook download / upload / edit
