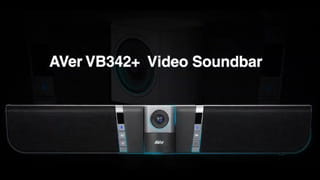

AVer SmartFrame Captures Everyone

Embedded with AVer SmartFrame, the VB342+ automatically frames all meeting participants, adjusting the camera zoom, pan, and focus to fit everyone on-screen in seconds without overreacting to unimportant movement. Have an efficient meeting with AVer SmartFrame.

vb342+
VB342+

SmartSpeaker Instantly Identifies Speakers

Highly sensitive SmartSpeaker Tracking pinpoints speakers wherever they are in the room, cutting through noise to zoom in on the human voice. Also, SmartSpeaker’s 6-meter diameter pickup range saves wasted time moving speakers closer to the microphone.

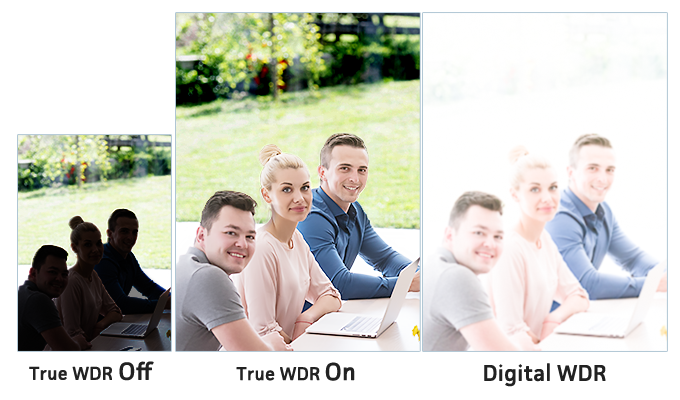

Constant Clarity with True WDR

Wide Dynamic Range (WDR) controls the exposure and processes the light values of pixels in high-contrast backlight environments to provide clear images. Hold your meeting anywhere and in any lighting with the VB342+.

VB342+

Fit Everyone in the Room

The VB342+ captures the room with a 120° FOV multi-glass lens that features a motorized 180° pan and 105° tilt view for a wider perspective than ever. No more concern about where your seat is located.

VB342+

Analytics for Efficient Meeting Rooms

The VB342+ provides an analytics API so enterprises and third-party software providers can obtain people-counting data for better understanding of meeting-space usage.

VB342+

Specs

  • Camera
    • Sony Exmore sensor: Ultra crystal-clear image support up to 4K
    • Frame rate: 4K 30fps; 1080p, 720p, 960 x 540, 848 x 480, 800 x 448, 640 x 480, 640 x 360, 424 x 240, 320 x 240, 320 x 180 at 60, 30, 15fps
    • SmartFrame & SmartSpeaker: Automatic FOV adjustment to fit all participants and focus on the speaker
    • 120° wide field of view
    • True WDR up to 120 db: Superb back light compensation technology for optimizing light balance in high-contrast conditions
    • Digital zoom rate up to 4X leveraging 4K sensor
    • 3D denoise technology maintains clear and natural imaging in low light conditions
    • Mirror, AE, white balance: Auto, manual override via PTZApp
    • Minimum focus distance: 80 cm
    • Analytics API: Enterprises and third-party software providers can obtain people-counting data for better understanding of meeting-space usage
  • Motorized Pan and Tilt Movement
    • Pan: Total horizontal viewing area 180°
    • Tilt: Total vertical viewing area 105°
    • 10 camera presets (through remote control)
    • Fast and quiet pan & tilt movement
  • Audio
    • Microphones: 2 unidirectional microphones supporting 6 m pickup
    • 5Wx2 stereo full range speakers with professional bass port tuned for communication
    • Volume up to 96 dB SPL at 1/2 meter
    • Echo cancellation
    • Noise suppression
    • 3.5 mm Line-in (aux) cable connects BYOD smartphones or PCs as speakerphones
  • HDMI
    • DisplayLink: Built-in USB 3.1 (Gen 1) to HDMI adapter
    • 1080p HDMI output to TV**

    ** Win7/8 OS: Must install DisplayLink driver via AVer PTZApp
  • Connectivity
    • 12V/5A power adaptor
    • Mini DIN6 for RS232 connection
    • USB type C connector
    • HDMI out connection (DisplayLink)
    • Phone in (3.5 mm audio jack)
    • Mic input
    • Wireless connection with mobile devices**

    **Wireless function is not supported in the USA and some other countries. Please contact a local agent for details.
    **Wireless connection does not support wireless speakerphone devices.
  • Video Format
    • YUV, YUY2, M-JPEG
  • USB
    • 3.1 Gen 1, backward compatible USB 2.0
    • UVC (USB Video Class) 1.1
  • Control
    • IR remote control
    • VISCA/pelco P/pelco D via RS232
    • UVC/UVA plug-and-play
    • PTZApp
  • Security and Mount
    • Camera wall-mount bracket included
  • System Requirements
    • Windows 7/8/8.1/10
    • MacOS X 10.7 or higher
    • Google Chromebook version 29.0.1547.70
    • Android 5 or higher
  • Hardware Specs*
    • 2.4 GHz Intel® Core™2 Duo processor
    • 2 GB RAM or more
    • USB 3.1 Gen1 port (supports 4K); USB 2.0 port (supports up to 1080p)
  • Power Supply
    • AC 100V~240V, 50/60 Hz
    • Consumption: 12V, 5A
  • Free Applications for Meeting Collaboration
    (Free app support on Windows® and Mac computers)
    EZManager: Camera Central Management Software
    • Remotely group FW/SW upgrades, control the camera, and manage settings
    PTZApp
    • Compatible with Skype plugin for answering and hanging up via remote control
    • Upgrade firmware automatically or manually
    • Control the camera
    • Set parameters and adjust the camera image
    • Diagnose operating status
    • View live video
    EZLive
    • Real-time streaming / annotating / image capturing / video recording
  • Environmental Data
    • Operation temperature: 0°C~40°C
    • Operation humidity: 20%~80%
    • Storage temperature: -20°C~60°C
    • Storage humidity: 20%~80%
  • Dimensions
    • Package dimensions: 739 x 193 x 229 mm
    • Package weight: 4.16 kg/9.3 lbs
    • Camera: 650 x 100 x 109.5 mm/2.133 kg
    • Remote control: 200 x 50 x 21 mm/0.09 kg
  • Package Contents
    • VB342+ unit
    • Power cable 10 ft (3 m)
    • USB 3.1 type-C to type-A Cable 6 ft (1.8 m)
    • USB 3.1 type-A to type-C adapter
    • Quick-start guide
    • Wall-mount bracket and screws
    • Warranty card
    • Remote control
    • Battery
  • Optional Accessories
    • Mini DIN6 to RS232 adapter
    • TV mount and mounting screws
    • 33 ft (10 m) expansion microphone
    • 66 ft (20 m) expansion microphone
    • 33 ft (10 m) USB 3.1 extension cable
    • 66 ft (20 m) USB 3.1 extension cable
    • 16 ft (5 m) USB 2.0 cable
  • Warranty**
    • Camera: 3+2 years
    • Accessories: 1 year

    ** Please register online to receive a free 2-year warranty extension.
    For detailed warranty information, please contact an AVer representative.
  • Compatible Applications
    • Zoom, Microsoft® Teams, Skype for Business, Skype, Google Hangouts, Intel® Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting®, TrueConf, Adobe Connect, Cisco WebEx®, Fuze, GoToMeeting™, Microsoft® Lync™, Vidyo, vMix, WebRTC, Wirecast, XSplit

    *For 4K UHD support, please check system/hardware requirements with your software application provider.
Front
Back
Back panel
  • 1DC 12V
  • 2USB port (to PC)
  • 3RS232
  • 4Phone In
  • 5Mic
  • 6HDMI Out
  • 7Reset




Model VB342+ VB342
Camera
Zoom Ratio 4Xdigital zoom 4xdigital zoom
Resolution 4K2K 4K2K
FOV (diagonal) 120° 94°
Frame Rate 4k@30fps, 1080p@60fps 4k@30fps, 1080p@60fps
Movement PTZ (Digital Zoom) PTZ (Digital Zoom)
Mechanical Pan 180°(±40°) 165°(±40°)
Mechanical Tilt 105°(±15°) 85°(±15°)
Preset points 10 10
True WDR Yes No
Advance features
Auto frame Yes No
Audio tracking Yes No
Bluetooth Yes No
Camera management software Yes and free Yes and free
I/O interface
RS232 Yes No
HDMI Yes. DisplayLink Yes. DisplayLink
Others USB3, Audio in,microphone expansion USB3, Audio in,microphone expansion

URL

Accessories

  • 10M Expansion Microphone

    Optional:

    10M Expansion Microphone
  • 20M Expansion Microphone

    Optional:

    20M Expansion Microphone
  • 5M USB 2.0 type-A to type-C cable

    Optional:

    5M USB 2.0 type-A to type-C cable

* Please contact local authorized dealer/distributor for purchasing optional accessories.
